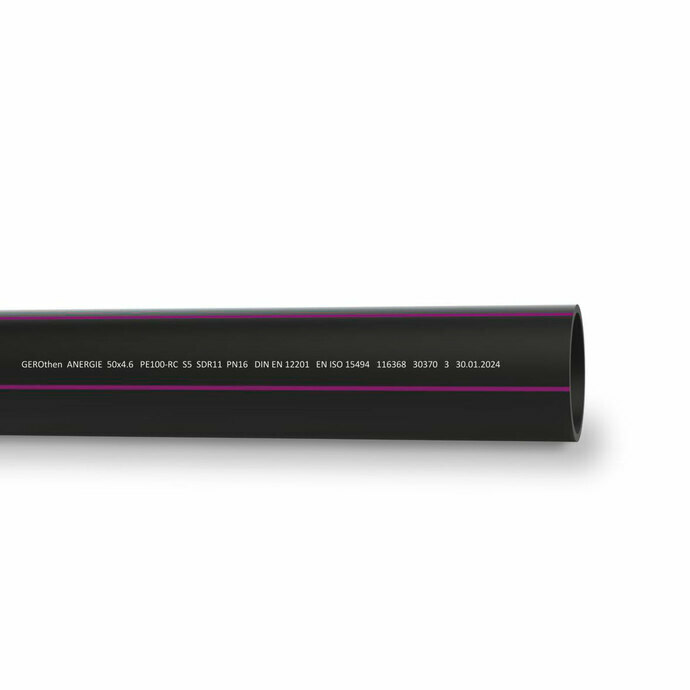

GEROthen® connection pipesANERGIE-bars: with smooth ends, black with purple stripes, Industrial-bars: smooth-ended, black


GEROthen® pressure pipes made from PE100-RC or PE100-RT-RC for horizontal connection of GEROtherm® geothermal probes.

Advantages:


  • Low density compared to other materials
  • Long life
  • Good chemical resistance
  • Extreme toughness and elongation at break
  • Low abrasion


A comprehensive range of accessories (smooth-ended/­collared moulded parts, weld fittings, flanges, tools, machines) rounds off our delivery range.

PE100-RT-RC for greater temperature and crack resistance made from PE100-RT-RC*
* Protected technology, patent pending (No. 01073/­20).

Please refer to the corresponding Tender specifications for a more detailed product description.

Product details PE100-RC

Material:


  • Polyethylene PE100-RC (resistance to crack)


Delivery form:


  • 5m or 10m pipes


Applications:


  • Temperature range: –20°C/­+40°C


  • Pressure resistance: PN16@ 20°C/­SDR 11
  • Dimensions: de 25mm to de 250mm, other pipe outside diameters are available upon request


For further product details, please refer to the corresponding Technical datasheet.

Product details PE100-RT-RC

Material:


  • Polyethylene PE100-RT-RC* (RT = raised temperature; RC = resistance to crack)


Lieferform:


  • 5m pipes


APPLICATIONS:


  • Temperature range: –30°C/­+95°C1)

  • Pressure resistance: PN16@ 20°C/­SDR 11
  • Dimensions: de 40mm to de 50mm, other pipe outside diameters are available upon request

1) The expected durability of the material depends on the duration and temperature of use, along with the inside pressure. The load limits are calculated based on the cumulative damage rule (Miner’s rule) as per SN EN ISO 13760. For an object-specific definition, the annual frequency temperature profile and the inside pressure must be provided.

* Protected technology, patent pending (No. 01073/­20).

For further product details, please refer to the corresponding Technical datasheet.

Price list

(For the price list in € please contact our sales team.)

Dimensions

Dimension Pressure resistance Standard lengths Material
25 x 2.3mm bis 250 x 22.7mm PN16@20ºC/­SDR11 5m or 10m PE100-RC Price list page 62
40 x 3.7mm PN16@20ºC/­SDR11 5m PE100-RT-RC Price list page 64
50 x 4.6mmPN16@20ºC/­SDR115mPE100-RT-RCPrice list page 64
