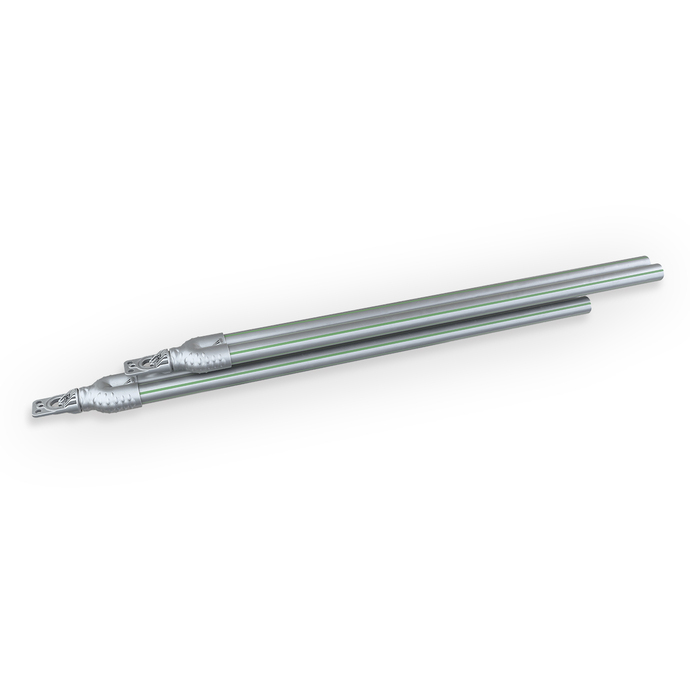

GEROtherm^® DUPLEX-REXThe completely diffusion-resistant geothermal probe with protective layer

Principle:

The completely diffusion-resistant GEROtherm^® DUPLEX-REX geothermal probe prevents the penetration of gaseous substances. The completely diffusion-resistant double-U probe for shallow geothermal use. Resists internal pressure up to PN16@ 20°C and PN20@ 20°C.

Design:

The foot (U-bend) features the same geometry as the double-U probes, but with a vapour-deposited metallic film layer and protective lacquer coating. The core pipe, which carries the medium, is made from state-of-the-art, crack-resistant PE100-RC and is certified to SKZ HR3.26. The pipe’s diffusion resistance is achieved by using a polymer-matrix film with an integral diffusion barrier. It also features a scratch-resistant protective jacket for mechanical protection. This innovation is patented; Patent No. EU 3 450 878.

Product details

Material

Core pipe made from PE100-RC (RC = resistance to crack); diffusion barrier made of polymer matrix film; polypropylene PP protective layer

Applications

‎

Temperature range: –20°C/+40°C

Pressure resistance: PN16@ 20°C/SDR 11
Dimensions: de 35 mm, de 43 mm

Pressure resistance: PN20@ 20°C/SDR 9
Dimensions: de 43 mm

For further product details, please refer to the corresponding Technical datasheets or the Flyer.

Advantages

Greater resistance thanks to reinforced walls on probe foot (U-bend); PN25
Compatible with the GEROtherm^® weight system‎, the GEROtherm^® PUSH-FIX impact-resistant sleeve including weight connector and the GEROtherm^® UNI-FIX universal weight mounting
Larger cross-sections and welded coupler sockets for lower hydraulic resistance
Proven mud container in probe foot (U-bend) with two ribs that make it easier to use a measuring float
No need for welding on site
DIN EN 12201-2
Patent No. EU 3 450 878 and EP 2 395 301
On request, the geothermal probe can also be produced on our rental metal reels

Please refer to the corresponding Tender specifications for a more detailed product description.

Price list

(For the price list in € please contact our sales team.)

Price list GEROtherm^® geothermal probes

Tender specifications

Tender specifications GEROtherm^® DUPLEX-REX

Technical datasheets

Technical datasheet DUPLEX-REX PN16 32mm

Technical datasheet DUPLEX-REX PN16 40mm

Technical datasheet DUPLEX-REX PN20 40mm

Certificates core tube

Certificate SKZ No. A278

Certificate KIWA KOMO No.: K84660/02

Flyer

Flyer GEROtherm^® REX

Fact sheet

Fact sheet Test values GEROtherm^® REX

Dimensions

Dimension	Pressure resistance	Standard lengths	Ø probe foot	Coil dimensions
32 x 3.0 mm	up to PN16@20°C / up to SDR11	50 - 160 m	94 mm	Probes
40 x 3.7 mm	up to PN16@20°C / up to SDR11	50 - 300 m	115 mm	Probes
40 x 4.5 mm	up to PN20@20°C / up to SDR9	200 - 300 m	115 mm	Probes

Factory certificate as per EN 10204 2.2

Factory certificate

References

> more

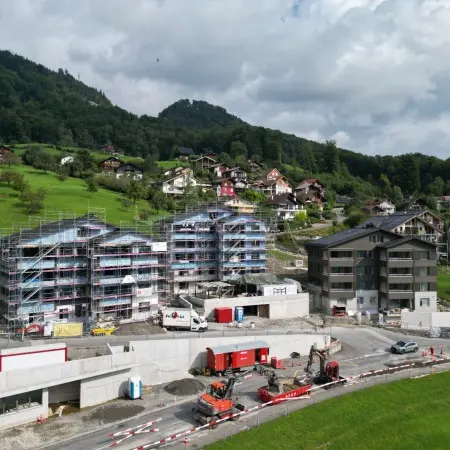

GEROtherm^® DUPLEX-REX –“Seeblick Wilen” residential development, 6060 Sarnen
> more

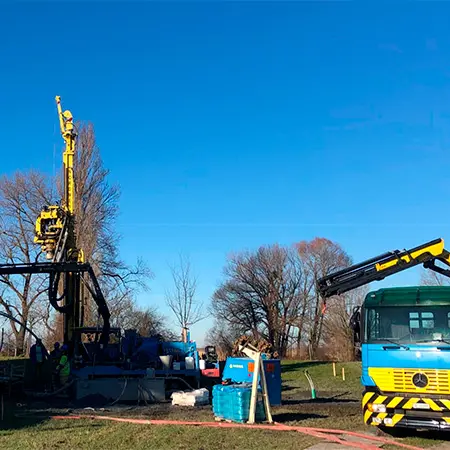

GEROtherm^® DUPLEX-REX - Residential buildings on Lake Constance
> more

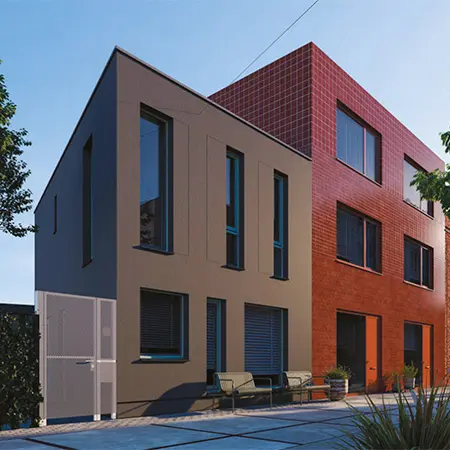

GEROtherm^® DUPLEX-REX - Construction Wisselspoor, Utrecht (NL)
