GEROtherm^® manholeType SMART+

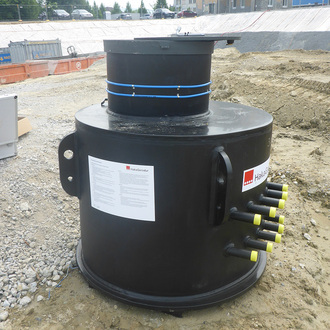

Plastic manhole Ø800 for connecting geothermal probes in floor slabs and groundwater. Suitable for brine amounts of up to 19.6 m³/h*. SAVE 97 and SAVE125 flow with ball valve and return with control valve inline setter.

The GEROtherm^® SMART+ distribution shaft is an innovative and well-designed product.

* V˙ max. (m3/h) @ 1m/s in SAVE

Product details

Suitable for brine amounts of up to 19.6 m³/h
Measurement ranges of the inline flow valve from 20 to 70 l/min per connection or alternatively 5 to 42 l/min
Horizontal connections with 2 to 8 (SAVE97) or 2 to 6 connections (SAVE125)
Connections ø50 mm
Main shut-off valve available as option

You can find further product details on the corresponding flyer in the Download area.

Every manhole is fully factory pre-assembled, tested and documented with a corresponding test report.

Advantages

Fully factory pre-assembled, tested and ready to connect to the electrofusion coupler sockets
Installed and pressure-tested GEROtherm^{^®} collector/distributor SAVE97 or SAVE125 impresses with its extremely low pressure loss, which increases the energy efficiency of the entire system
Every brine circuit can be regulated and shut off individually

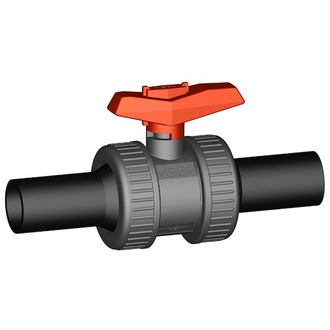

Radially removable ball valves and balancing valves enable replacement in the event of damage

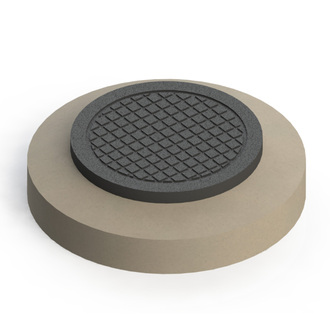

Full cast cover DN600/B125 inscription GEOTHERMAL (D400 on request)
Customer-specific adjustments / optimisations possible at any time
