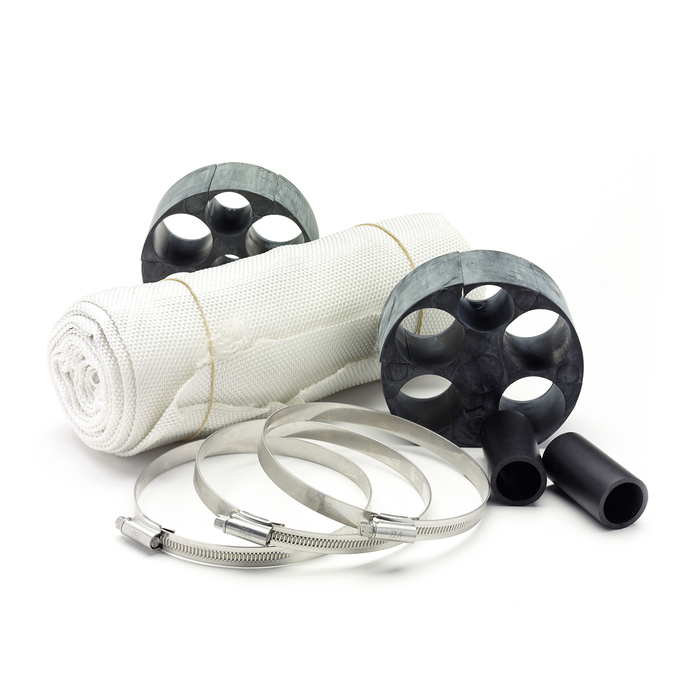

GEROtherm® PACKER

The GEROtherm® PACKER is a sealing system used in boreholes for geothermal probes. Patent EP 1865 146 B1, fabric hose available separately in lengths of 3 m to 100 m.

Product details:


  • Concluding report EWS sealing systems for the investigation by EnergieSchweiz, Swiss Federal Office of Energy (SFOE).
  • Water protection for geothermal probe boreholes.
  • Overview of sealing systems for protecting groundwater.


For further product details and measurements, please refer to the corresponding technical data sheet.

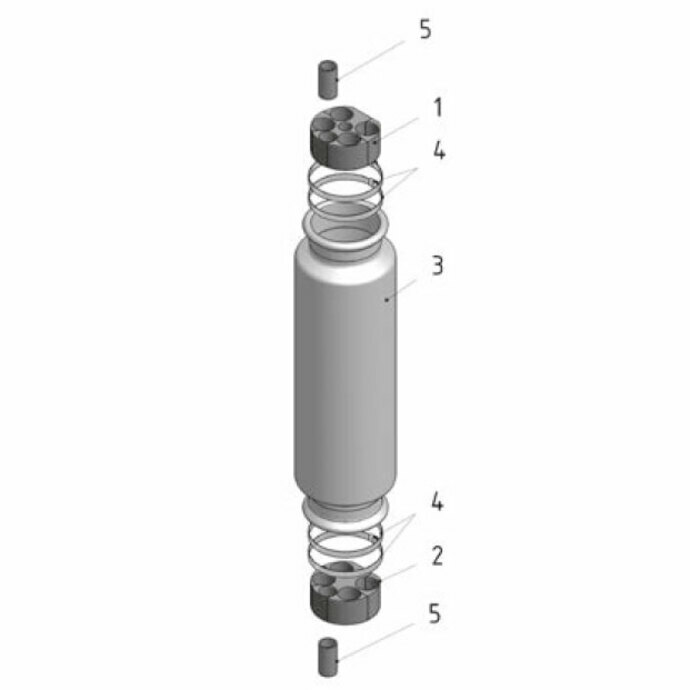

GEROtherm® PACKER

  1. Rubber packaging element
  2. Rubber packaging element
  3. Fabric hose
  4. Clamping band
  5. Spacer tube ø 32/­ ø 25‎

Technical datasheet

Dimensions

Part no. Designation Dimension
mm
Borehole diameter
mm
Length
m
Weight
kg per pc.

108158 GEROtherm® PACKER ⌀ 150mm 32 127-140 2.5 3.2 Price list page 35
108160 GEROtherm® PACKER ⌀ 175mm 32 140-165 2.5 3.2 "
108161 GEROtherm® PACKER ⌀ 150mm 40 127-140 2.5 3.2 "
108159 GEROtherm® PACKER ⌀ 175mm 40 140-165 2.5 3.3 "
108162 GEROtherm® PACKER FLUX/­REX ⌀ 175mm 43 140-165 2.5 3.3 "
100223GEROtherm® PACKER REX ⌀ 150mm35127-1402.53.2"
Part no. Designation Dimension
mm
Borehole diameter
mm
Length
m
Weight
kg per pc.

104630 Fabric hose ⌀ 150mm - 127-140 1-100 0.5 Price list page 35
104629Fabric hose ⌀ 175mm-140-1651-1000.5"
