GEROtherm® PUSH-FIX / UNI-FIXImpact-resistant sleeve and weight connector for the sinking of GEROtherm® geothermal probes

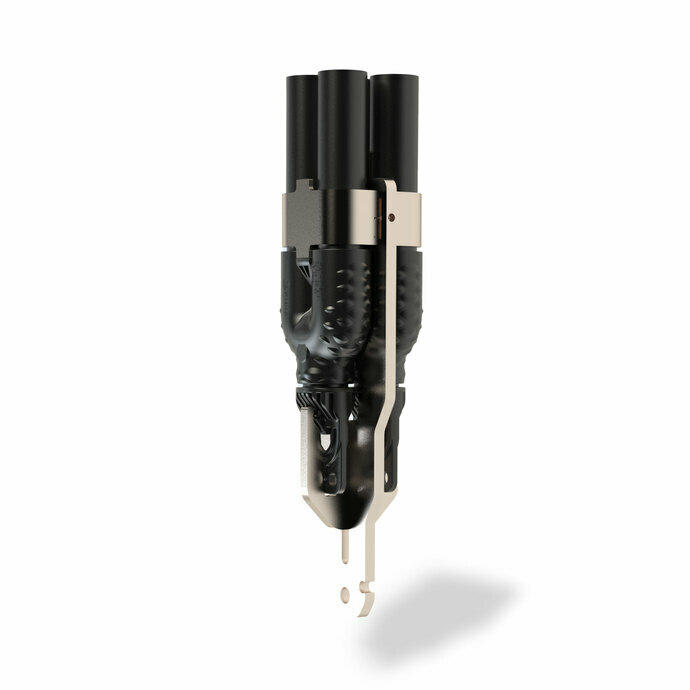

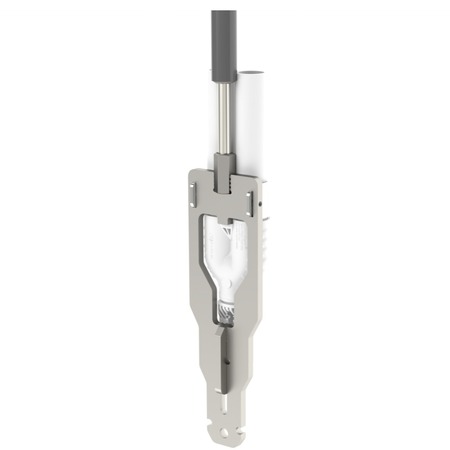

PUSH-FIX as an impact-resistant sleeve and weight connector for the sinking of single and double-U GEROtherm® geothermal probes with linkage support. For further product details and measurements, please refer to the corresponding technical data sheets.

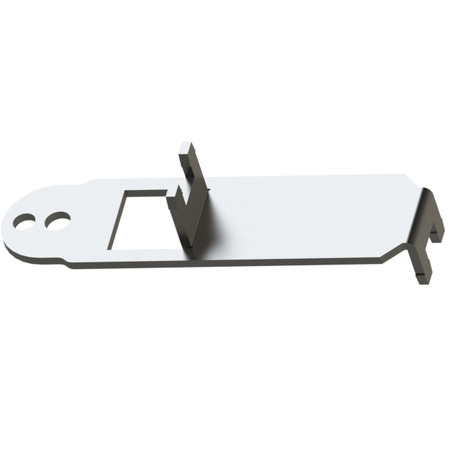

UNI-FIX 2020 weight connector for installing the GEROtherm® probe feet dn 32 to dn 53 for universal weight mounting. With additional mechanical fastening similar to the GEROtherm® weight system. The hinge pins are pre-installed and are supplied together with the UNI-FIX 2020. No tool is required for installation on the GEROtherm® geothermal probes. For further product details and measurements, please refer to the corresponding technical data sheets.
Note: The use of the GEROtherm® PUSH-FIX requires an even, straight sinking of the geothermal probe. Lateral obstacles, caverns or tilting of the probe base cannot always be overcome accurately.
PUSH-FIX:
UNI-FIX:
Weight connector de50mm
For further product details and measurements, please refer to the corresponding technical datasheets.
UNI-FIX 2020 weight connector for installing the GEROtherm® probe feet dn 32 to dn 53 for universal weight mounting. With additional mechanical fastening similar to the GEROtherm® weight system. The hinge pins are pre-installed and are supplied together with the UNI-FIX 2020. No tool is required for installation on the GEROtherm® geothermal probes. For further product details and measurements, please refer to the corresponding technical data sheets.
Note: The use of the GEROtherm® PUSH-FIX requires an even, straight sinking of the geothermal probe. Lateral obstacles, caverns or tilting of the probe base cannot always be overcome accurately.
Product details:
PUSH-FIX:
- Maximum static supported weight: 500 kg
- Maximum pushing force: 2000 kg
UNI-FIX:
- Maximum supported weight: 100 kg
Weight connector de50mm
- Maximum supported weight: 300 kg
For further product details and measurements, please refer to the corresponding technical datasheets.
Price list
(For the price list in € please contact our sales team.)
| Part no. | Designation | Dimension mm | Variation Single-U | Variation Doppel-U | ⌀ mm | Length mm | Weight kg | |
|---|---|---|---|---|---|---|---|---|
| 108139* | PUSH-FIX Single-U | 1 x 32 | X | 15.0 | 94 | 370 | 2.2 | Price list page 55 |
| 108140* | PUSH-FIX Single-U | 1 x 35 (REX) | X | 19.0 | 96 | 370 | 2.2 | " |
| 108141 | PUSH-FIX Single-U | 1 x 40 (1) | X | 20.0 | 112 | 385 | 2.3 | " |
| 108143* | PUSH-FIX Single-U | 1 x 43 (REX) | X | 112 | 385 | 2.3 | " | |
| 108144 | PUSH-FIX Doppel-U | 2 x 32 | X | 100 | 370 | 2.6 | " | |
| 108146* | PUSH-FIX Doppel-U | 2 x 35 (REX) | X | 105 | 370 | 2.6 | " | |
| 108147 | PUSH-FIX Doppel-U | 2 x 40 (1) | X | 118 | 385 | 2.9 | " | |
| 108149 | PUSH-FIX Doppel-U | 2 x 43 (REX) | X | 120 | 385 | 2.9 | " | |
| 104606 | UNI-FIX | 2 x 32-43 | X | - | 225 | 0.5 | " | |
| 113284 | UNI-FIX 2020 | 2 x 32-43 | X | - | 245 | 0.6 | " | |
| 108157 | INTERFACE | 32-43 | X | X | - | 635 | 0.5 | " |
| 116841 | Weight connector | 2×50 (PN16 & PN20) | X | - | 340 | 2.5 | " |
* Not a stock item; delivery lead time of 6 to 8 weeks.
(1) Also compatible with GEROtherm® FLUX geothermal probes.
For further product details and measurements, please refer to the corresponding Technical datasheets.
(1) Also compatible with GEROtherm® FLUX geothermal probes.
