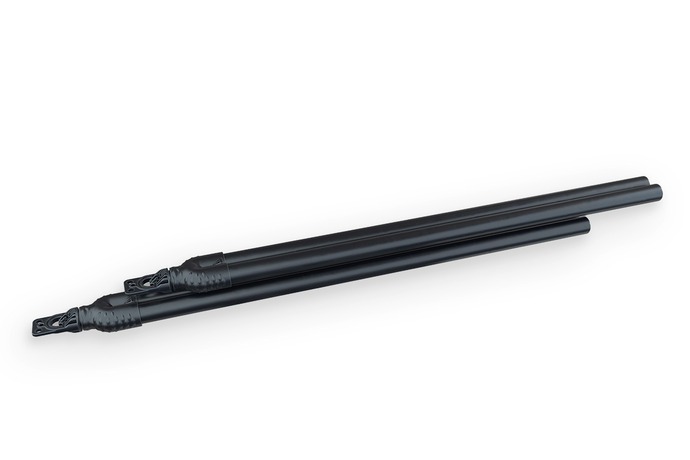

GEROtherm^® VARIOThe conical pressure-optimised geothermal probe

Principle:

Double-U probe for shallow geothermal use. Resists internal pressure up to PN16 at 20°C and PN20@20°C.

Design:‎

The geometry of the probe foot (U-bend) is identical to that of the DUPLEX double-U probes. Optimised probe pipe with the same outside diameter as the DUPLEX double-U probes with variable wall thickness made from PE 100-RC.

Product details

Material
‎

Polyethylene PE100-RC (RC = resistance to crack)

Applications
‎

Temperature range: –20°C/+40°C

Pressure resistance: up to PN16@ 20°C/SDR 11
Dimensions: de 32mm, de 40mm

Pressure resistance: up to PN20@ 20°C/SDR 9
Dimensions: de 40mm, de 50mm

For further product details, please refer to the corresponding Technical datasheets or the Flyer.

Advantages

Pressure resistance up to 16 bar or 20 bar
Probe foot (U-bend) resists internal pressure up PN25
Optimised hydraulic pressure loss and therefore more efficient overall systems
100% plastic for better corrosion resistance
Significantly improved buckling pressure resistance in the lower section
Same diagonal dimension as DUPLEX probes

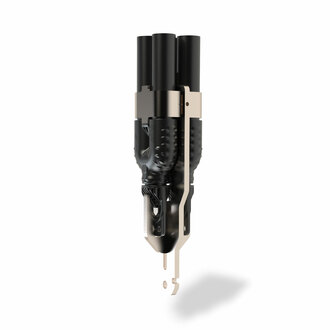

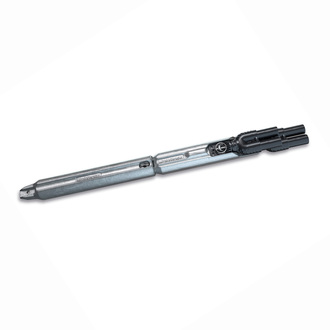

Compatible with the GEROtherm^® weight system, the GEROtherm^® PUSH-FIX impact-resistant sleeve including weight connector and the GEROtherm^® UNI-FIX universal weight mounting
Proven mud container in probe foot (U-bend) with two new ribs that make it easier to use a measuring float
Installation conditions similar to those for standard probes
Patent No. EP 2 706 308
SKZ certified and monitored SKZ certificate No. A278
Certified and monitored by KIWA KOMO certificate No.: K84660/02

Please refer to the corresponding Tender specifications for a more detailed product description.

Price list

(For the price list in € please contact our sales team.)

Price list GEROtherm^® geothermal probes

Technical datasheets

Technical datasheet VARIO PN16 32mm

Technical datasheet VARIO PN16 40mm

Technical datasheet VARIO PN20 40mm

Technical datasheet VARIO PN20 50mm

Tender specification

Tender specifications GEROtherm^® VARIO

Certificates

Certificate SKZ No. A278

Certificate KIWA KOMO No.: K84660/02

Flyer

Flyer EWS GEROtherm^® VARIO

Dimensions

Dimension	Pressure resistance	Standard lengths	Ø probe foot	Coil dimensions
32 x 3.0 mm	up to PN16@20°C / up to SDR11	100 - 160 meter	92 mm	Probes
40 x 3.7 mm	up to PN16@20°C / up to SDR11	100 - 160 meter	113 mm	Probes
40 x 4.5 mm	up to PN20@20°C / up to SDR9	170 - 250 meter	113 mm	Probes
50 x 5.6 mm	up to PN20@20°C / up to SDR9	170 - 250 meter	143 mm	Probes

* @ 20°C

Pressure losses

Pressure loss VARIO de 40mm PN20 EG 25

Pressure loss VARIO de 40mm PN20 Water 15

Pressure loss VARIO de 50mm PN20 EG 25

Pressure loss VARIO de 50mm PN20 Water 15

Factory certificate as per EN 10204 2.2

Factory certificate
