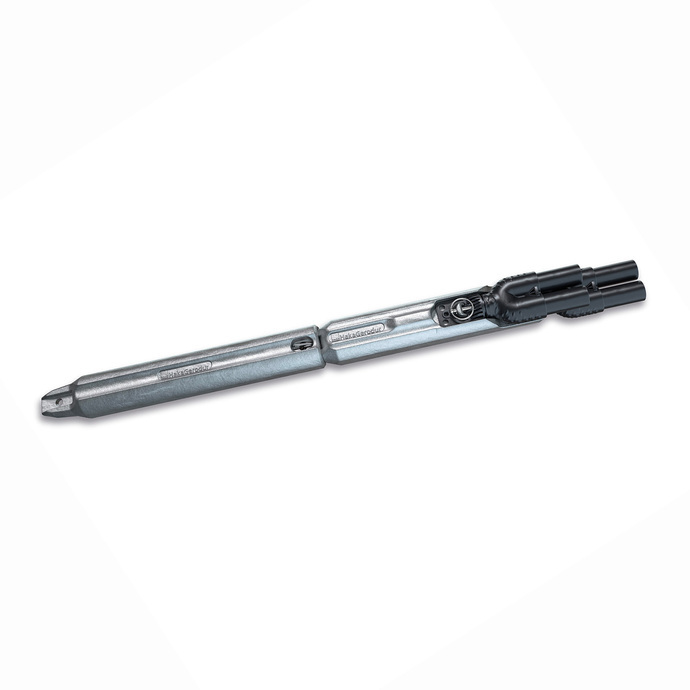

GEROtherm® weight system

The maximum load-bearing force of a double-U GEROtherm® geothermal probe with the GEROtherm® probe foot, used in conjunction with the new GEROtherm® weights, is 560 kg1).

The maximum load-bearing force of a single-U GEROtherm® geothermal probe with the new GEROtherm® probe foot, used in conjunction with the new GEROtherm® additional weight, is 280 kg1).

1) Maximum tensile force based on test using the HakaGerodur tensiometer fixture at 20°C. The dynamic tensile forces on the construction site must be taken into account accordingly. Refer to technical manual for notes on installation.

For further product details and measurements, please refer to the corresponding Technical datasheet or the Flyer.

The GEROtherm® weight system – incredible flexibility

Combinable and perfectly shaped weights for safe installation without the need for tools.
The GEROtherm® weight components can be combined easily as follows.
15 kg initial weight
Part No.: 104642
19 kg initial weight
Part No.: 104643
15 kg initial weight with 20 kg additional weight
Initial weight: 104642
Additional weight: 104644
19 kg initial weight with 20 kg additional weight
Initial weight: 104643
Additional weight: 104644
Additional weight 20 kg with single-U
Part No.: 104644

Price list

(For the price list in € please contact our sales team.)

Dimensions

Part no. Designation De
mm
Length
mm
Weight
kg

104642 Initial weight 15kg 94 510 15.0 Price list page 33
104643 Initial weight 19kg 94 615 19.0 "
104644Additional weight 20kg8858520.0"

Spare parts

Part no. Designation
104640 Spring cotter pin Price list page 33
104641Linch pin"
Please refer to the Technical datasheet for detailed dimensional drawings.
