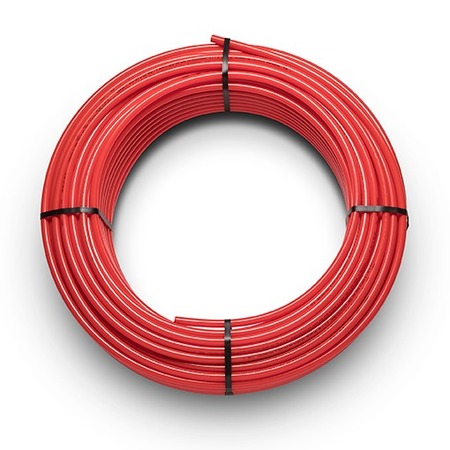

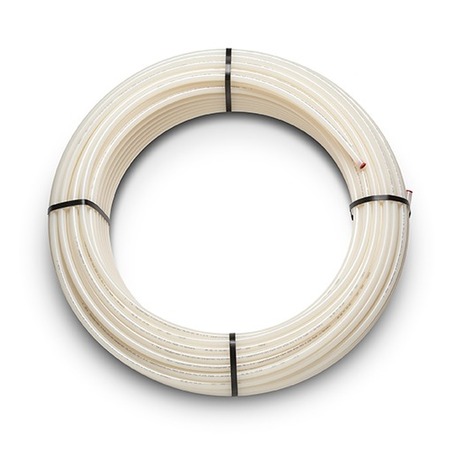

All-plastic pipe MPPHAKAultraflex PE-RT

The five-layer HAKAultraflex all-plastic pipe for underfloor heating made of PE-RT type I was specially developed for heating installers. The innovative interaction of the materials makes the pipe very flexible and thus extremely easy to lay.

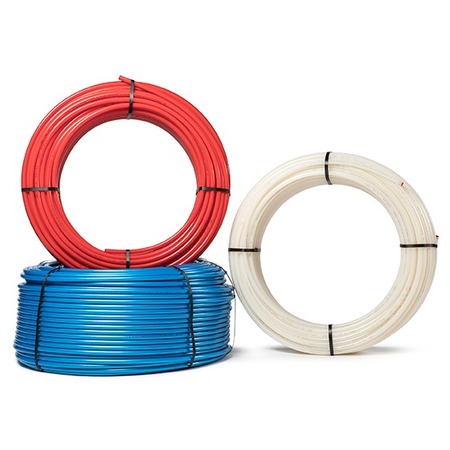

Available as an OEM/private label product in the standard dimensions, colours and coil lengths.

Application areas

Surface heating
Cooling system
Concrete core activation

Advantages

Extremely flexible and easy to install even at low temperatures
Corrosion and incrustation resistant
Resistant to numerous chemicals
Oxygen-tight (five-layer pipe) according to DIN 4726
Excellent stress rupture resistance

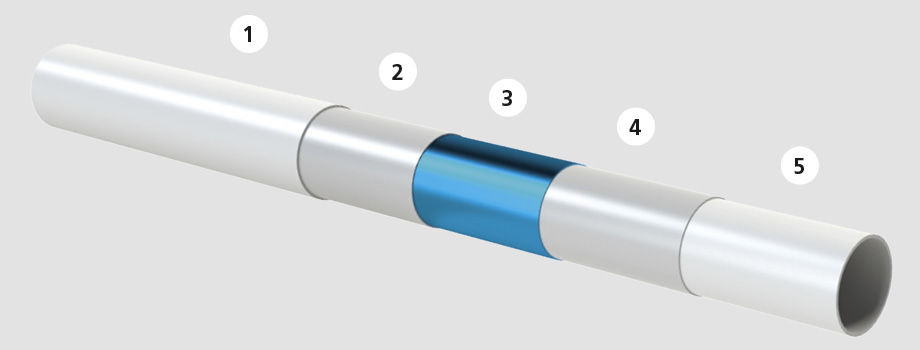

Layer composition

1. Outer layer of PE-RT type I
2. Adhesion promoter
3. EVOH-Oxygen barrier layer
4. Adhesion promoter
5. Inner layer of PE-RT type I

Flyer

Flyer HAKAultraflex

Product properties

Properties ultraflex PE-RT

Tolerances

Tolerances ultraflex PE-RT

Certificates

Certificate DIN CERTCO

Certificate SKZ A 236

Test report IMA ISO 21003-2

Test report IMA ISO 21003-5

Layer composition

1. ‎Inner layer of PE-RT type I
2. Adhesion promoter for a force-fit connection
3. EVOH-Oxygen barrier layer
4. Adhesion promoter for a force-fit connection
5. Outer layer of PE-RT type I

References

> more
Royal Albert Hall, London / England, Novum
> more
Unique Zurich Airport, Zürich-Kloten: Standing place heating (finger dock B)
