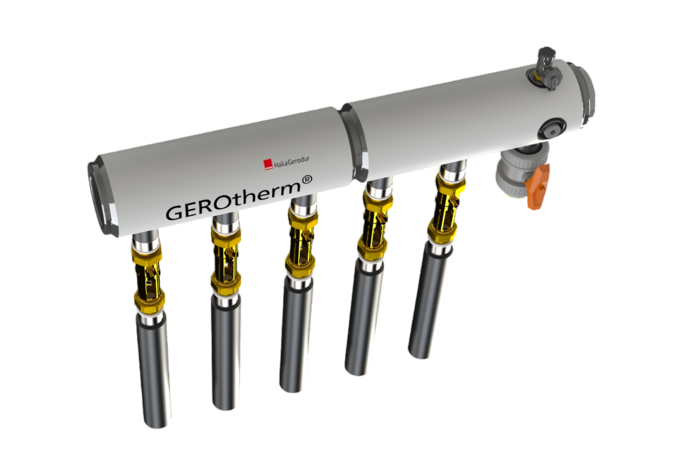

Collector/distributorSAVE 125

APPLICATIONS

:‎

Max. flow: 19.6 m³/h*
Material: PE100
Temperature range: –20°C/+40°C
Temperature range@ max. 3 bar: –20°C/+50°C

Please refer to the corresponding Flyer, Technical datasheet or Tender specifications for a more detailed product description.

* V˙ max. m³/h @ 1m/s in SAVE

Product details

Max. 15 connections de 40 mm or 50 mm

With Ball Valve

‎

High-quality plastic ball valve TYPE GF 375 with removable ball seat‎
Flat-sealing connections with ball valve

WITH BALANCING VALVE‎‎‎

‎

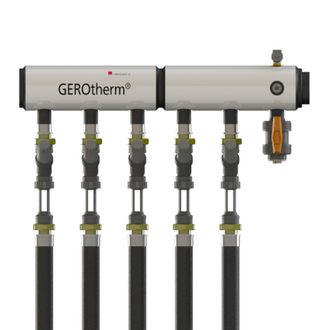

With hyline connection:

de 40 or de 50 = 20–60l/min‎

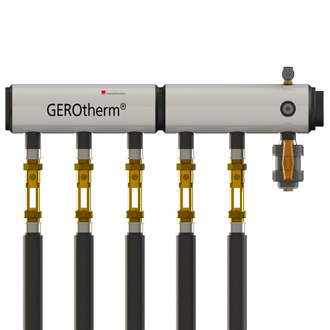

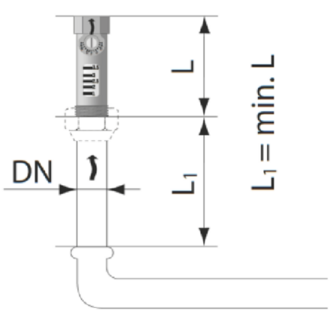

With inline connection:

de 40 = 20–70 l/min and 5–42 l/min selectable
de 50 = 20–70 l/min and 5–42 l/min selectable‎

For weight and prices, see the Price list on pages 56 to 58.1

For further product details, please refer to the corresponding Flyer.

Advantages

With filling/drainage valve de 40 or de 50 mm
Flat-sealing connections with ball valve / balancing valves
Bleeder R½"
Outlet Y selectable according to table
3 connections ½"

Price list

(For the price list in € please contact our sales team.)

Price list GEROtherm^® SAVE

Technical datasheet

Technical datasheet GEROtherm^® SAVE 125

Tender specifications

Tender specifications GEROtherm^® SAVE 125

Certificate

Certificate SKZ A 278

Flyer

Flyer GEROtherm^® SAVE

Mounting instructions

Mounting instruction SAVE Balancing valve

Mounting instruction SAVE ball valve

Dimensions

Videos

Accessories

SAVE 125 outlet Y

Part no.	Designation	Z mm
108047	Pipe PE ø110 mm	150	Price list page 60
114541	Pipe PE ø90 mm	130	"
108049	Pipe PE ø75 mm	95	"
108050	Pipe PE ø63 mm	90	"
113345	External thread R 2½”	190	"
108052	External thread R 2”	140	"
108055	Internal thread Rp 2”	210	"

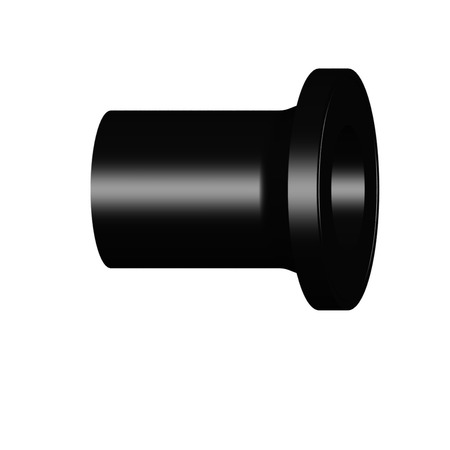

108057	Loose flange ø110 mm/DN100	90	"
108058	Loose flange ø90 mm/DN80	170	"
108059	Loose flange ø75 mm/DN65	170	"
108060	Loose flange ø63 mm/DN50	150	"

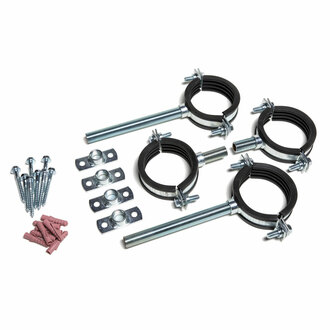

GEROtherm^® attachment set specially for GEROtherm^® SAVE 125 (incl. noise insulation).
For a standard SAVE pair (collector and distributor), 1 attachment set 104586 (price list on page 84) is provided.

Bleeder caps made of PE100 SDR11 with welded reduction nipple Rp½" internal thread incl. bleeder G½".

Part no.	de mm	V mm	X mm	H mm	Weight kg
108201	40-½"	127	55	-	0.150	Price list page 87
108202	50-½"	132	60	-	0.200	"
108203	63-½"	137	65	-	0.250	"

Bleeder unit made of PE100 SDR11 with welded reduction nipple Rp½" for installation in a horizontal line incl. bleeder G½".

Part no.	de mm	V mm	X mm	H mm	Weight kg
112299	63-½"	170	60	108	0.500	Price list page 87

Bleeder cap without bleeder PE 100 SDR 11 (108208 / 108209)

ELGEF^® Plus Electrofusion-T 90° transition to Rp½" stopping plug (108206 / 108207)

Bleeder unit made of PE100 SDR11 with welded reduction nipple Rp½" for installation in a horizontal line incl. bleeder G½".

Mounting information thermomanometer

Part no.	Designation
104183	Taco Vent Bleeder 1/2"	Price list page 88
104190	Thermometer -20/+40°	"
104565	Thermomanometer 0/+120° and 0 to 10 bar	"
108208	Bleeder cap without bleeder PE 100 SDR 11 de40 - Rp1/2"	"
108209	Bleeder cap without bleeder PE 100 SDR 11 de50 - RP1/2"	"
108206	ELGEF^® Plus Electrofusion-T 90° PE100, 40 mm transition to Rp1/2" stopping plug	"
108207	ELGEF^® Plus Electrofusion-T 90° PE100, 50 mm transition to Rp1/2" stopping plug	"
112454	Hummel SFE valve 1/2" x 3/4"	"
