Collector/distributorSAVE 180/SAVE 250

APPLICATIONS‎:

‎
Max. flow:

SAVE 180 48.4 m³/h*
SAVE 250 118.4 m³/h*‎

Material: PE100
Temperature range: –20°C/+40°C
Temperature range@ max. 3 bar: –20°C/+50°C‎

* V˙ max. m³/h @ 1m/s in SAVE

Product details

Connections DE 40 MM OR 50 MM

‎
With ball valve

High-quality plastic ball valve TYPE GF 375 with removable ball seat
Flat-sealing connections with ball valve

With balancing valve
With hyline connection:

‎de 40 or de50 = 20–60l/min‎‎‎

With inline connection:

de 40 = 20–70 l/min and 5–42 l/min selectable
de 50 = 20–70 l/min and 5–42 l/min selectable‎

Please refer to the Technical datasheets and the corresponding Flyer or Tender specification for additional product details.

Advantages

With filling/drainage valve de 40 or de 50 mm
Flat-sealing connections with ball valve /- balancing valves
Bleeder R½"
Selectable main outlet to heat pump
Customer-specific production‎

Price list

(For the price list in € please contact our sales team.)

Price list GEROtherm^® SAVE

Technical datasheets

Technical datasheet GEROtherm^® SAVE 180

Technical datasheet GEROtherm^® SAVE 250

Tender specifications

Tender specifications GEROtherm^® SAVE 180

Tender specifications GEROtherm^® SAVE 250

Certificates

Certificate SKZ A 278

Flyer

Flyer GEROtherm^® SAVE

Mounting instructions

Mounting instruction SAVE Balancing valve

Mounting instruction SAVE ball valve

Dimensions

References

> more
GEROtherm^® FLUX - Givaudan Innovation Center 8310 Kemptthal
> more
GEROtherm^® - Friesenberg Neighborhood Center Familienheim-Genossenschaft Zürich

Accessoires

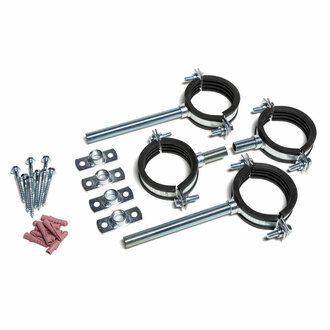

GEROtherm^® attachment set specially for GEROtherm^® SAVE 180 and SAVE 250 incl. noise insulation.

Part no.	Fitting for	Type	L mm	X mm	Y min./max.	Weight kg
104587	SAVE 180	BM	200	735	216-221	10.940	Price list page 84
104604	SAVE 180	EM	200	735	216-221	5.470	"
104588	SAVE 250	BM	200	1050	291-296	13.880	"
104605	SAVE 250	EM	200	1050	291-296	6.940	"

_{BM = Basic module with 4 pipe clamps and 2 brackets
EM = Extension module with 2 pipe clamps and 1 bracket
* Maximum recommended bracket spacing}

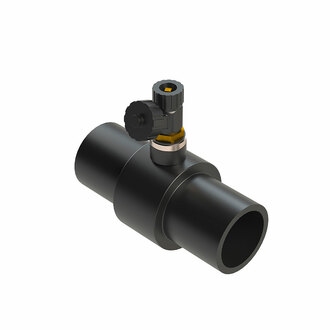

Bleeder caps made of PE100 SDR11 with welded reduction nipple Rp½" internal thread incl. bleeder G½".

Part no.	de mm	V mm	X mm	H mm	Weight kg
108201	40-½"	127	55	-	0.150	Price list page 87
108202	50-½"	132	60	-	0.200	"
108203	63-½"	137	65	-	0.250	"

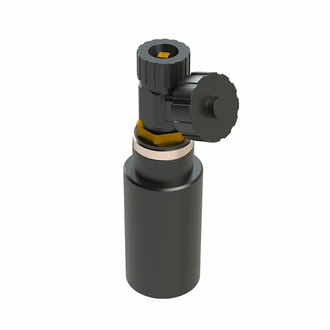

Bleeder unit made of PE100 SDR11 with welded reduction nipple Rp½" for installation in a horizontal line incl. bleeder G½".

Part no.	de mm	V mm	X mm	H mm	Weight kg
112299	63-½"	170	60	108	0.500	Price list page 87

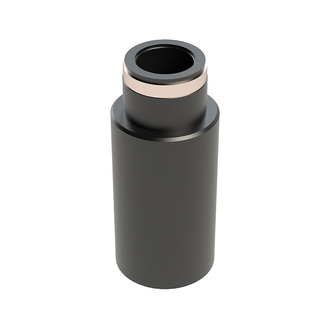

Bleeder cap without bleeder PE 100 SDR 11 (108208 / 108209)

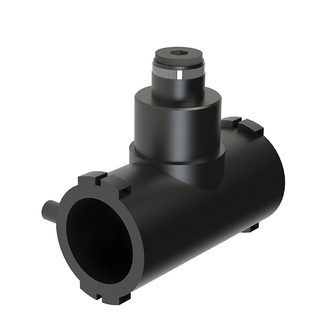

ELGEF^® Plus Electrofusion-T 90° transition to Rp½" stopping plug (108206 / 108207)

Bleeder unit made of PE100 SDR11 with welded reduction nipple Rp½" for installation in a horizontal line incl. bleeder G½".

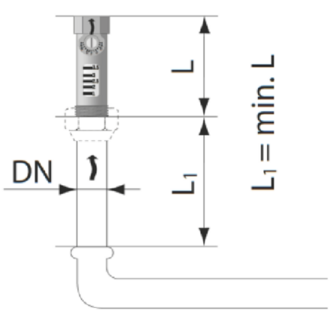

Mounting information thermomanometer

Part no.	Designation

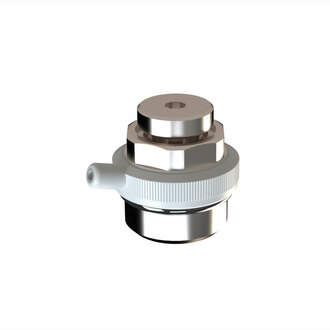

104183	Taco Vent Bleeder 1/2"	Price list page 88
104190	Thermometer -20/+40°	"
104565	Thermomanometer 0/+120° and 0 to 10 bar	"
108208	Bleeder cap without bleeder PE 100 SDR 11 de40 - Rp1/2"	"
108209	Bleeder cap without bleeder PE 100 SDR 11 de50 - RP1/2"	"
108206	ELGEF^® Plus Electrofusion-T 90° PE100, 40 mm transition to Rp1/2" stopping plug	"
108207	ELGEF^® Plus Electrofusion-T 90° PE100, 50 mm transition to Rp1/2" stopping plug	"
112454	Hummel SFE valve 1/2" x 3/4"	"
