Collector/­distributorSAVE customised

Applications:


Max. flow
  • SAVE 97 7.9 m3/­­h*
  • SAVE 125 19.6 m3/­­h*
  • SAVE 180 48.4 m3/­­h*
  • SAVE 250 118.4 m3/­­h*‎


  • Material: PE100
  • Temperature range: –20°C/­­+40°C
  • Temperature range@ max. 3 bar: –20°C/­­+50°C‎

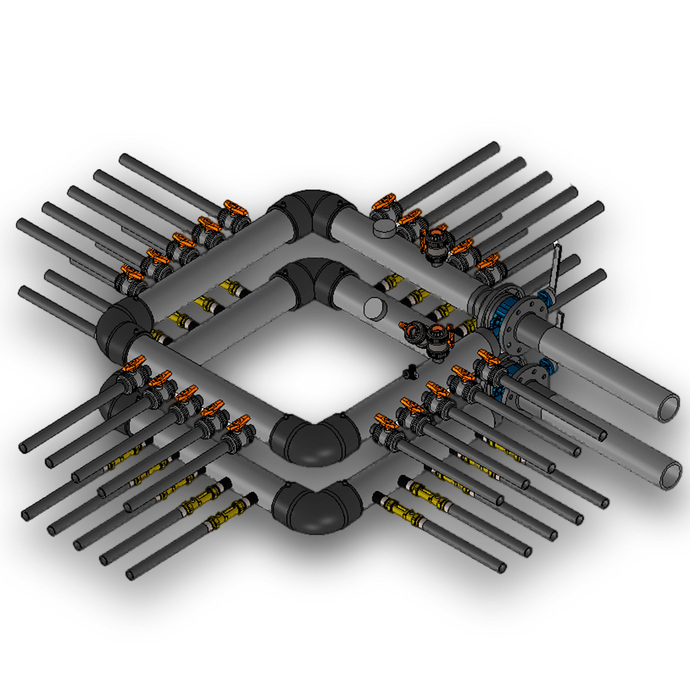

The dimensional drawings are produced specifically for the corresponding structure. Production is carried out following written approval by the client.

* V˙ max. m3/­s @ 1m/­s in SAVE

Product details

CONNECTIONS DE 40 MM OR 50 MM (SAVE 97 DE 32 MM)


With ball valve
  • High-quality plastic ball valve TYPE GF 375 with removable ball seat
  • Flat-sealing connections with ball valve‎


With balancing valve
With hyline connection:
  • de 40 or de50 = 20–60l/­min‎‎


With inline connection:
  • de 40 = 20–70 l/­­min and 5–42 l/­­min selectable
  • de 50 = 20–70 l/­­min and 5–42 l/­­min selectable


The dimensional drawings are produced specifically for the corresponding structure. Production is carried out following written approval by the client.

Advantages

  • With or without filling/­drainage valve de 40 or de 50 mm
  • Flat-sealing connections with ball valve /­- balancing valves
  • Selectable main outlet to heat pump
  • Customer-specific configuration and production‎

Price list

(For the price list in € please contact our sales team.)

Videos

Accessoires

GEROtherm® attachment set specially for GEROtherm® SAVE 97 and 125 (incl. noise insulation).
For a standard SAVE pair (collector and distributor), 1 attachment set is provided.
Part no. Fitting to L
mm
Y
min./­max.
Weight
kg

104585 SAVE 97 50 /­ 200 127-134 3.000 Price list page 84
104586SAVE 12550 /­ 200155-1603.300"
GEROtherm® attachment set specially for GEROtherm® SAVE 180 and SAVE 250 (incl. noise insulation).
Part no. Fitting to Type L
mm
X
mm
Y
min./­max.
Weight
kg

104587 SAVE 180 BM 200 735 216-221 10.940 Price list page 84
104604 SAVE 180 EM 200 735 216-221 5.470 "
104588 SAVE 250 BM 200 1050 291-296 13.880 "
104605SAVE 250EM2001050291-2966.940"
BM = Basic module with 4 pipe clamps and 2 brackets
EM = Extension module with 2 pipe clamps and 1 bracket
* Maximum recommended bracket spacing
Bleeder caps made of PE100 SDR11 with welded reduction nipple Rp½" internal thread incl. bleeder G½".
Part no. de
mm
V
mm
X
mm
H
mm
Weight
kg

108201 40-½" 127 55 - 0.150 Price list page 87
108202 50-½" 132 60 - 0.200 "
10820363-½"13765-0.250"
Bleeder unit made of PE100 SDR11 with welded reduction nipple Rp½" for installation in a horizontal line incl. bleeder G½".
Part no. de
mm
V
mm
X
mm
H
mm
Weight
kg

11229963-½"170601080.500Price list page 87
